Capable. Powerful. Adaptable.

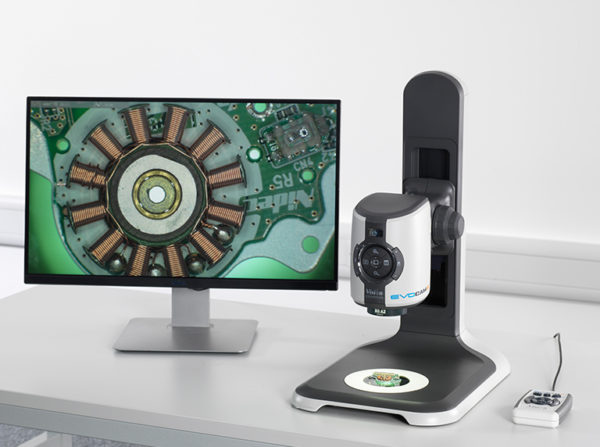

EVO Cam II is a powerful, versatile, yet easy-to-use, high definition digital microscope. Flexible configuration options deliver excellent image quality and optical magnification up to 760x. Digital zoom takes you further. What’s more, a range of precision objectives and wide-field lenses let you choose a configuration that’s an exact match for your unique and individual needs. It’s everything you would expect from a Vision Engineering microscope.



Consistency and versatility

Consistent quality inspections across multiple units, multiple users and multiple sites is easily achievable through a range of tools and by sharing of settings between units. Even in a constantly changing business environment, EVO Cam II adapts to new roles with push -button simplicity, delivering capabilities and predictable results whatever the task.

Exceptional images

A 30:1 optical zoom range, delivering optical magnification up to 760x, lets you see the detail you need to really understand the subject. Use the digital zoom to increase this to an impressive 9000x maximum magnification. Full HD video brings out every detail, and manual and automatic focusing gives you ultra-sharp images every time. Even large subjects which would defeat lesser microscopes are brought into complete top-to-bottom focus thanks to EVO Cam II’s focus stacking capability.





Maximum convenience

EVO Cam II is built for convenience. A large field of view and long working distance, for example, let you examine a wide range of subjects. Ten pre-sets make it easy to share between users across different applications, and a supervisor-setting lock lets you stay in control.








Precise, referencing measurements

EVO Cam II measures complex parts efficiently and quickly using overlays or point-to-point measurement. The overview function enables quick and convenient sample orientation, while overlays and the image comparison feature enable easy comparison with reference marks or sample images. Calibrations, which can be saved in pre-sets can be tracked through the zoom range, speeding measurement of different size details and removing the need to recalibrate.






Easy image capture

Capture high resolution images at the touch of a button either direct to USB memory stick, via wireless or direct to a PC. Simple capture and share options aid collaboration, reporting and training.










Intuitive simplicity

Out of the box, EVO Cam II can be set-up in minutes. Then simply turn the camera on and begin viewing and capturing full HD images. EVO Cam’s intuitive controls make it easy to use from the start, and the multi-language on-screen menu let even minimally trained operators can get to work straightaway.





A customized solution

Personalize EVO Cam II to your exact requirement by selecting from a comprehensive range of options. A 360˚ rotating viewer for looking around the subject, focus stacking for bringing tall subjects into uniform focus, a UV ring light, sub-stage illumination and a range of filters all help you inspect a wider range of subjects. Add a floating stage for even greater precision and control, and choose from a wide range of stands to make EVO Cam II perfect for your application.



Technical Specs
Zoom Ratio: 30x
Objective Lenses Magnification range (24” monitor) Working Distance (mm) Max Field of View (mm)
0.45x 2.3x – 68x 6.30″ (160mm) 9.5″ x 5.3″ (241mm x 134mm)
0.62x 3.1x – 93.7x 4.17″ (106mm) 6.8″ x 3.8″ (173mm x 96mm)
1.0x 5.0x – 151.2x 3.35″ (85mm) 3.5″ x 2.2″ (88mm x 57mm)
1.5x 7.6x – 226.8x 1.69″ (43mm) 1.77″ x1.41″ (45mm x 36mm)
2.0x 10x – 302.4x 1.14″ (29mm) 1.46″ x 1.06″ (37mm x 27mm)
Wide-field lenses
2 Dioptre 0.8x – 24x 19.69″ (500mm) 23.62″ x 13.78″ (600mm x 350mm)
3 Dioptre 1.15x – 32.6x 12.99″ (330mm) 16.53″ x 9.84″ (420 x 250mm)
4 Dioptre 1.71x – 51.41x 9.65″ (245mm) 11.54″ x 6.73″ (293mm x 171mm)
5 Dioptre 2.12x – 65.5x 7.76″ (197mm) 9.13″ x 5.31″ (232mm x 135mm)
Micro objectives
5x 250x – 378x 0.83″ (21mm) 0.08″ x 0.05″ (2.1mm x 1.3mm)
10x 500x – 756x 0.87″ (22mm) 0.04″ x 0.03″ (1.0mm x 0.65mm)
With 360° Optical Viewer
Setting 360° Rotating View Direct View
Magnification range (24” monitor) 19x – 105x 28x – 151x
Working Distance 1.39″ (35.5mm) 2.22″ (56.5mm)
Max Field of View 1.02″ x 0.87″ (26mm x 22mm) 0.79″ x 0.43″ (20mm x 11mm)
Viewing Angle 34° N/A
Zoom ratio 5.3x 5.3x
Illumination
Built in 8pt LED ring light for shadow-free illumination. Color temperature 5500K.
Optional
White and UV quadrant ring light For inspection of UV fluorescing subjects e.g. conformal coatings
Sub-stage illumination For translucent subjects, perforated subjects etc.
Flexible illuminators Twin flexible bar-lights to extend control of the effects reflections and shadows.
EPI illuminator Through-the-lens episcopic illumination to simplify inspection of bores, pipes, tubes, slots, and holes.
Camera
Camera zoom 30x optical; 12x digital
Camera resolution Full-HD 1080p, 1920 x 1080, 1/2.8″ CMOS
Frame rate 50fps & 60fps (switchable)
Focus Auto focus and manual focus
Output HDMI & USB 3.0
Saved file type .png
Stand options
Ergo stand Small footprint, high stability for high magnification use. Optional sub-stage illumination. Floating stage can be fitted. Small monitor mount can be fitted.
Multi-axis stand Precise and robust. Ideal for industrial application where maximum work space is required. Counter-balanced for quick, effortless, adjustability. Available with direct mounting to work surface or platform base (sub-stage base option is also available). Small monitor mount can be fitted.
Double boom stand For stability and extended reach. Available with direct mounting to work surface or platform base.
Single-arm boom stand High stability, large working distance range, heavy duty platform base.
Bench stand Compact, low profile base with substage
Articulated arm stand Extended reach and ultimate flexibility to allow precise positioning.
On-board camera, lighting and zoom controls are standard. Also includes tools for: using overlays, grids, cursors, calibration & dimensioning. Focus Stacking is optionally available. When connected to a PC, there are severel options:
Software Options
ViCapture Image and video capture.
DimensionOne Image capture, annotation, on-screen measurement.
DimensionTwo Image capture, annotation, on-screen measurement, camera control.
ViPlus Image capture, analysis, enhancement, annotation, on-screen measurement, camera control, reporting.
VifoxEVO Image capture, annotation, on-screen measurement, camera control, reporting.
Standard power 100V-240V, 50/60Hz, available in all worldwide plug configurations.
Other Accessories
Remote control console For hand-held camera control; improves user confort and includes quick access to pre-sets.
Floating stage For smooth and precise control. For use with Ergo stand and Bench stand only.
Filters A range of filters are available to enhance details and contrast: including colour temperature and polarisers.
Ergo stand monitor mount For mounting a 10” or 12” monitor directly to the stand. For in-line viewing, small footprint and easy adjustment.
Multi-axis stand monitor mount For mounting a 10” or 12” monitor directly to the stand. For in-line viewing, small footprint, easily adjustable, and can move with the stand height adjustment.
Frequently asked questions
Yes. EVO Cam II can be used to perform simple measurements, with customisable overlay grid and cursors. Sometimes called dimensioning.
No. EVO Cam II’s intuitive controls makes it easy to use from the start.
Image can be captured either direct to a USB memory stick, via a PC connected through the supplied USB3 port and cable, or via an optional HDMI image capture device
EVO Cam II captures images in PNG (Portable Network Graphics) and JPEG formats. PNG images do not lose information caused by compression, maintaining maximum detail in the saved image. JPEG offers three levels of compression to allow control over saved file size. EVO Cam II saves images with an automatic sequence number.
Maximum optical magnification is 754x, when displayed on a 24″ monitor. When combined with the EVO Cam II’s 12x digital zoom the magnification increases to 9,000x. Magnification is a combination of the optical configuration, digitally applied magnification and the size of the display screen. By changing the either of these components the magnification of the system is changed.

Part No:
AP-VE-EVOCAM
